TT-R50E
TT-R50E
Item Model Code: TTR50ET
Base Model: TTR50E
Specifications
- Code: TT-R50E
- Length: 1305
- Width: 595
- Seat_ Height: 555
- Wheelbase: 925
- Clearance: 135
- Height: 795
- Weight: 57
- Dry_ Weight: 54
- Category: 36
- Engine: Air-cooled, 4-stroke, SOHC, 2-valve
- Displacement: 49
- Bore: 36.0 x 48.6
- Spec_ Config: Motorcycle
- Compression: 9.5 : 1
- Lubrication: Wet sump
- Fuel: VM11
- Ignition: CDI
- Starter: Electric
- Fuel_ Tank: 3.1
- Oil: 1
- Final_ Trans: Chain
- Transmission: Constant mesh 3-speed
- Frame: Steel tube backbone
- Suspension_ Front: Telescopic forks, 96mm travel
- Suspension_ Rear: Swingarm, 71mm travel
- Brakes_ Front: Drum
- Brakes_ Rear: Drum
- Tyres_ Front: 2.50-10 4PR Tube type
- Tyres_ Rear: 2.50-10 4PR Tube type
Features

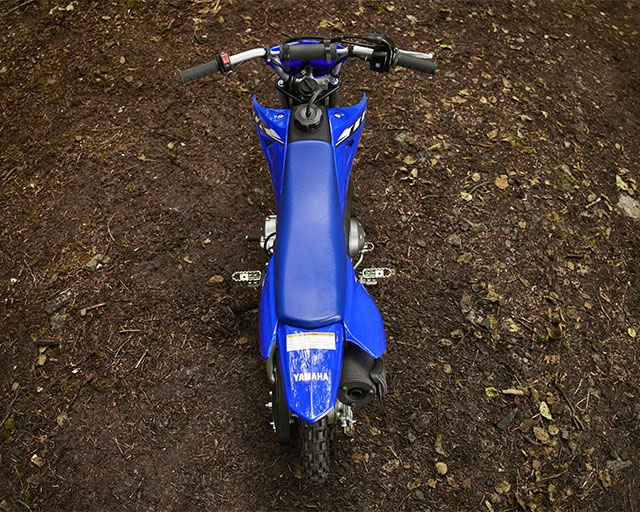

Comfortable Ergonomics
Ergonomics on this 50cc mini-bike are designed to make the new rider feel instantly at home. The thoughtfully-developed handlebar/seat/footrest layout gives a comfortable upright riding position, and a low 555 mm seat height helps to make the smallest TT-R feel just right for beginners.

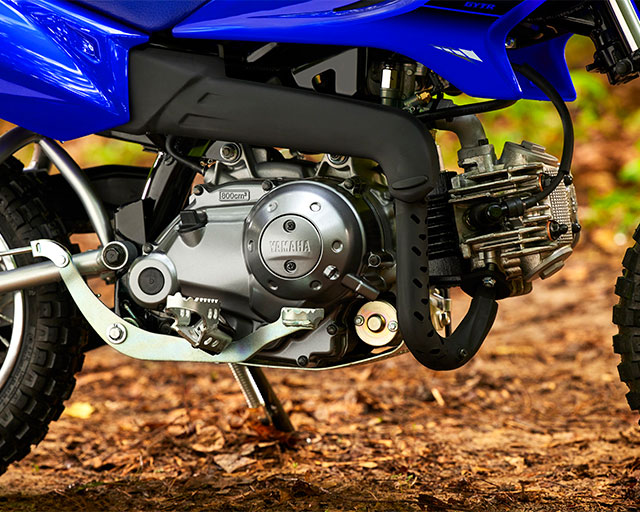

50cc 4-stroke engine
The rider-friendly, stylish little TT-R50E is equipped with an electric-start 50cc 4-stroke engine, and with a 3-speed gearbox with automatic clutch it really is one of the most simple and enjoyable motorcycles to operate. And because it cannot be started without the ignition key, parents can take full control over its use.

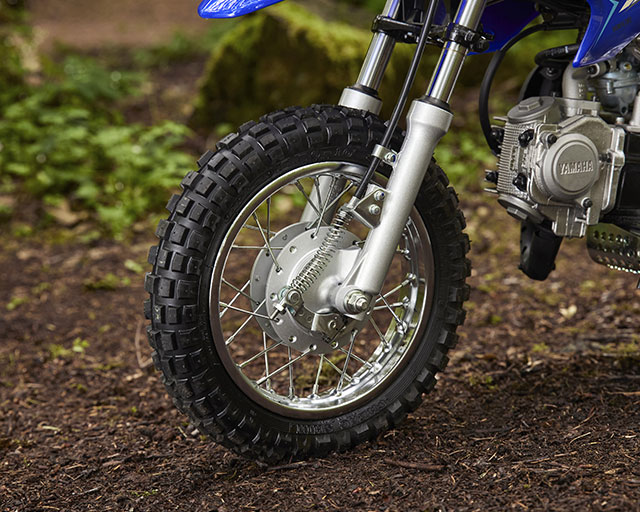

Drum brakes and knobby tyres
The TT-R50E features compact drum brakes for reliable, smooth and predictable stopping power, allowing new and inexperienced riders to develop their machine control skills. And for plenty of traction when riding off-road, this automatic mini-bike runs with 2.5inch wide knobby tyres at the front and rear.
Long travel suspension
Just like our larger-capacity off-road race bikes, the TT-R50E features long-travel front and rear suspension systems. With revised conventional front forks providing 96 mm wheel travel at the front and 71 mm wheel travel at the rear, the TT-R50E chassis is built to deliver high levels of riding comfort together with easy handling on bumpy off-road surfaces.
Additional information
| Division | Motorcycle |
|---|---|
| Spec_ Config | Motorcycle |
| SubCategory | Fun |
| Code | TT-R50E |
| Length | 1305 |
| Width | 595 |
| Seat_ Height | 555 |
| Wheelbase | 925 |
| Clearance | 135 |
| Height | 795 |
| Weight | 57 |
| Dry_ Weight | 54 |
| Engine | Air-cooled, 4-stroke, SOHC, 2-valve |
| Displacement | 49 |
| Bore | 36.0 x 48.6 |
| ProductGroup | Off Road |
| Lubrication | Wet sump |
| Compression | 9.5 : 1 |
| Fuel | VM11 |
| Ignition | CDI |
| Starter | Electric |
| Fuel_ Tank | 3.1 |
| Oil | 1 |
| Final_ Trans | Chain |
| Transmission | Constant mesh 3-speed |
| Frame | Steel tube backbone |
| Suspension_ Front | Telescopic forks, 96mm travel |
| Suspension_ Rear | Swingarm, 71mm travel |
| Brakes_ Front | Drum |
| Brakes_ Rear | Drum |
| Tyres_ Front | 2.50-10 4PR Tube type |
| Tyres_ Rear | 2.50-10 4PR Tube type |
