TT-R230

Item Model Code: TTR230S

Base Model: TTR230

Specifications

  • Code: TT-R230
  • Length: 2065
  • Width: 800
  • Seat_ Height: 870
  • Wheelbase: 1385
  • Clearance: 295
  • Height: 1180
  • Weight: 114
  • Dry_ Weight: 108
  • Category: 35
  • Engine: Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
  • Displacement: 223.0
  • Bore: 70.0 x 58.0
  • Spec_ Config: Motorcycle
  • Compression: 9.5 : 1
  • Lubrication: Wet sump
  • Fuel: Y26P x 1
  • Ignition: CDI
  • Starter: Electric
  • Fuel_ Tank: 8
  • Oil: 1.3
  • Final_ Trans: Chain
  • Transmission: Constant mesh 6-speed
  • Frame: Diamond
  • Suspension_ Front: Telescopic forks, 240mm travel
  • Suspension_ Rear: Swingarm (link suspension), 220mm travel
  • Brakes_ Front: Hydraulic single disc, 220mm
  • Brakes_ Rear: Drum
  • Tyres_ Front: 80/100-21 51R Tube type
  • Tyres_ Rear: 100/100-18 59R Tube type

Features

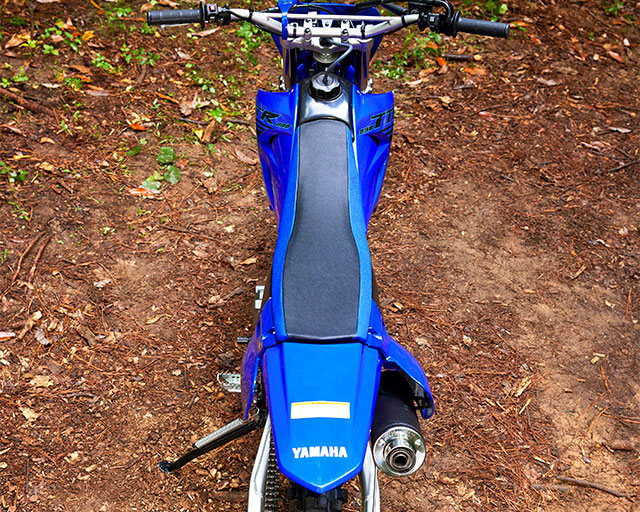

Low seat height

Low seat height

A low seat height atop long-travel suspension and 295mm of ground clearance makes this a very capable trailbike suitable to a wide range of riders.

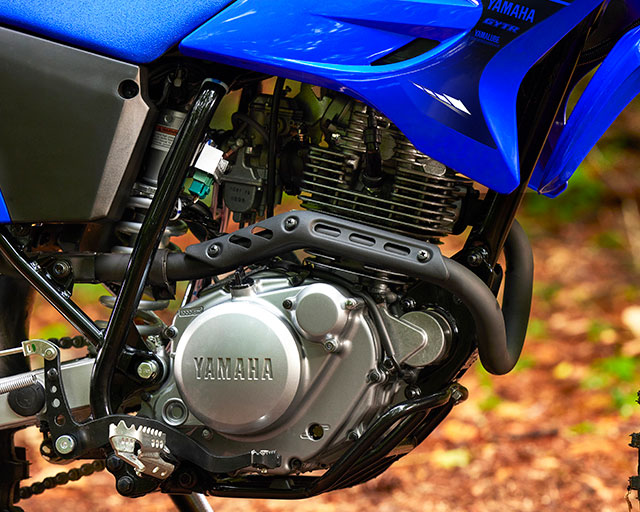

Air-cooled 223cc four-stroke

Air-cooled 223cc four-stroke

Confidence-inspiring handling and a rugged 223cc air-cooled, SOHC four-stroke producing predictable, broadband power make the TT-R230 a great choice for beginner and intermediate riders.

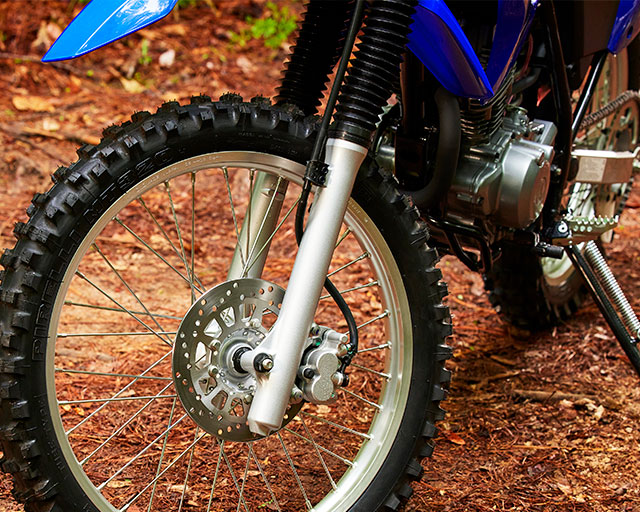

Plush suspension

Plush suspension

36mm front fork with 240mm of wheel travel provides plush, confidence inspiring control over rough terrain. 295mm of ground clearance should be enough to deal with almost any trail.

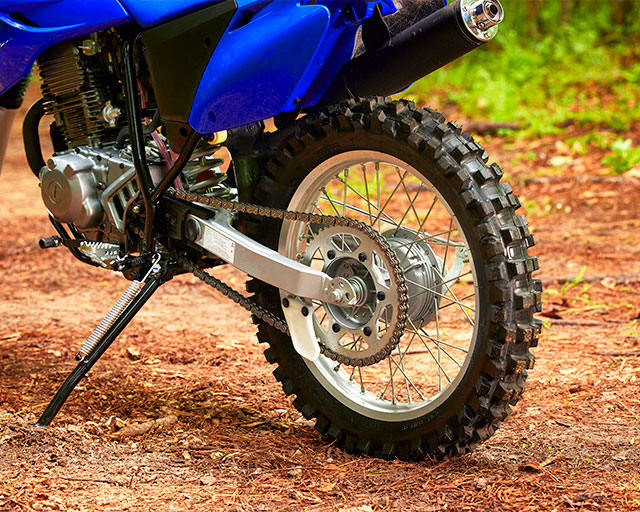

Superb stopping power

Superb stopping power

Front 220mm disc and 130mm rear drum brakes for powerful, confident stops. Full-size 21-inch front and 18-inch rear aluminium wheels keep unsprung weight down, while knobby tires provide motocross-spec grip.

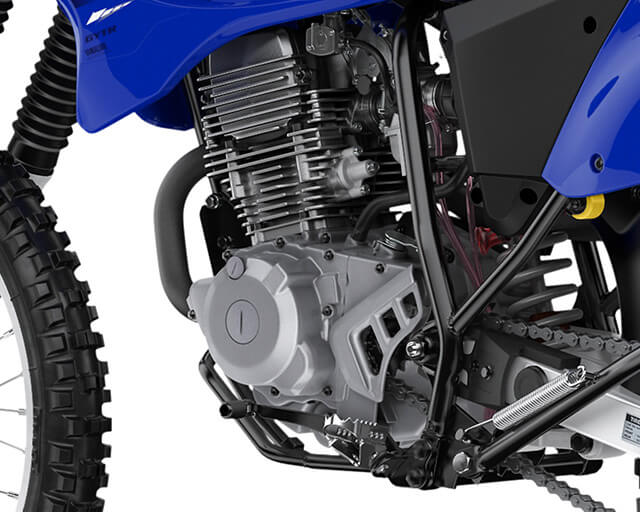

6-speed gearbox

6-speed gearbox

Smooth-shifting, six-speed transmission with heavy-duty clutch geared for maximum versatility and usable power delivery.

Additional information

Division

Motorcycle
Spec_ Config

Motorcycle
SubCategory

Agriculture
Code

TT-R230
Length

2065
Width

800
Seat_ Height

870
Wheelbase

1385
Clearance

295
Height

1180
Weight

114
Dry_ Weight

108
Engine

Air-cooled, 4-stroke, SOHC, 2-valve, single cylinder
Displacement

223.0
Bore

70.0 x 58.0
ProductGroup

Off Road
Lubrication

Wet sump
Compression

9.5 : 1
Fuel

Y26P x 1
Ignition

CDI
Starter

Electric
Fuel_ Tank

8
Oil

1.3
Final_ Trans

Chain
Transmission

Constant mesh 6-speed
Frame

Diamond
Suspension_ Front

Telescopic forks, 240mm travel
Suspension_ Rear

Swingarm (link suspension), 220mm travel
Brakes_ Front

Hydraulic single disc, 220mm
Brakes_ Rear

Drum
Tyres_ Front

80/100-21 51R Tube type
Tyres_ Rear

100/100-18 59R Tube type
