TT-R125LWE
TT-R125LWE
Item Model Code: TTR125LWES
Base Model: TTR125LWE
Specifications
- Code: TT-R125LWE
- Length: 1885
- Width: 795
- Seat_ Height: 805
- Wheelbase: 1270
- Clearance: 295
- Height: 1085
- Weight: 90
- Dry_ Weight: 85
- Category: 36
- Engine: Air-cooled, 4-stroke, SOHC, 2-valve
- Displacement: 124.0
- Bore: 54.0 x 54.0
- Spec_ Config: Motorcycle
- Compression: 10.0 : 1
- Lubrication: Wet sump
- Fuel: VM20 x 1
- Ignition: CDI
- Starter: Electric and Kick
- Fuel_ Tank: 6
- Oil: 1.2
- Final_ Trans: Chain
- Transmission: Constant mesh 5-speed
- Frame: Diamond
- Suspension_ Front: Telescopic forks, 180mm travel
- Suspension_ Rear: Swingarm (link suspension), 168mm travel
- Brakes_ Front: Hydraulic single disc, 220mm
- Brakes_ Rear: Drum
- Tyres_ Front: 70/100-19 42M Tube type
- Tyres_ Rear: 90/100-16 52M Tube type
Features

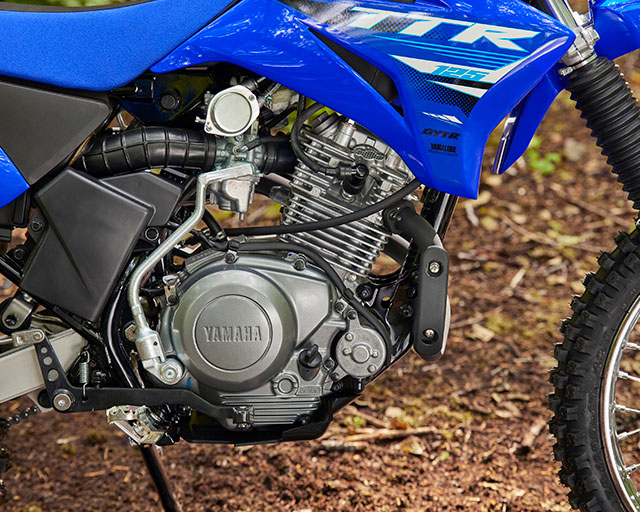

125cc 4-stroke engine
Driven by a 125 cc 4-stroke engine, the TT-R125LWE deliver plenty of smooth power for spirited off-road riding. Being air-cooled, this punchy little engine is relatively simple to maintain, and with a 5-speed gearbox and manual clutch, both models prepare the rider for the day when they move up to a full-sized motorcycle.

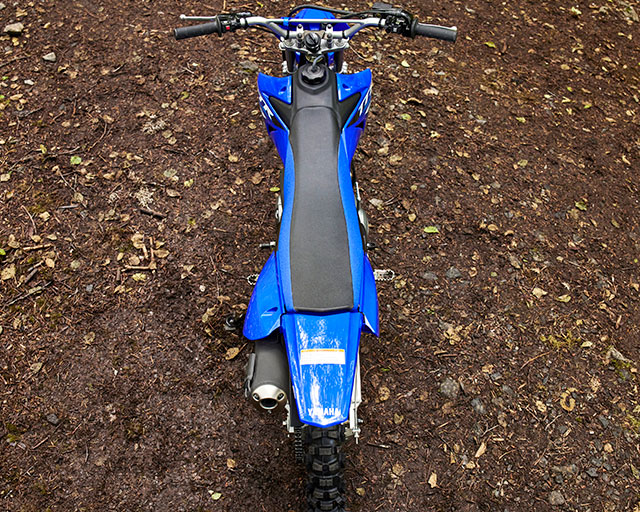

YZ-inspired bodywork
The stunning bodywork on the TT-R125LWE was inspired by our MXGP-winning YZ bikes. Made from specially-developed polypropylene that combines low weight with high strength, the fenders, tank panels and side panels are built to handle some tough treatment.

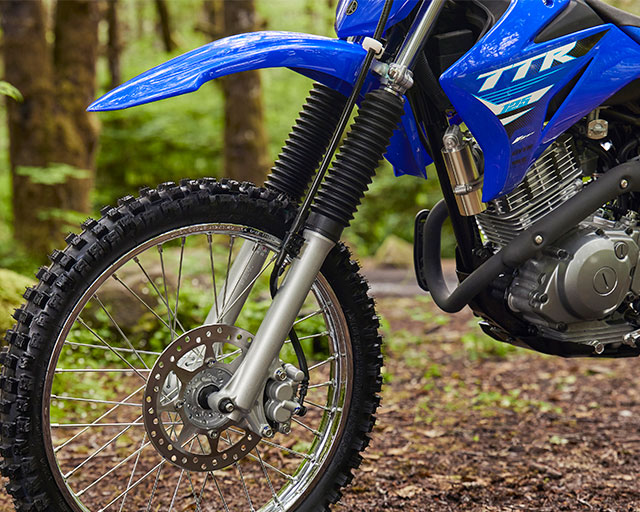

Long travel suspension
Check out the compact steel frame and rugged suspension systems and you can see that this is a seriously capable off-road motorcycle. The sturdy front forks offer an impressive 180 mm of wheel travel, while the link-type rear suspension gives 168 mm of movement, allowing the TT-R125LWE to handle some seriously tough terrain.

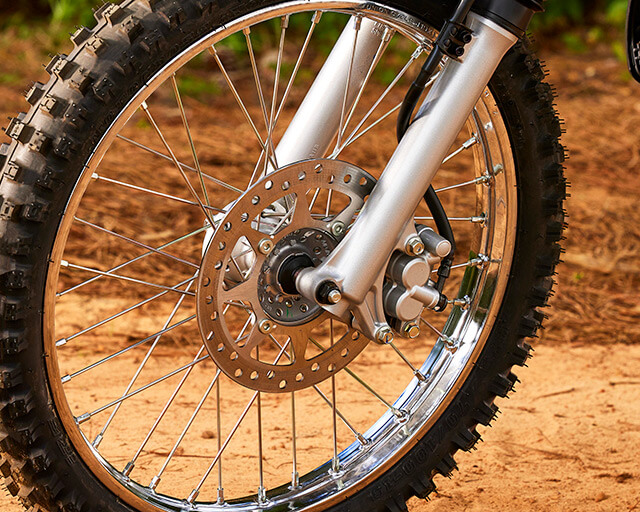

Smooth stopping power
To handle the TT-R125LWE's perky performance, the bike has an efficient 220 mm diameter front disc brake that allows the rider to reduce speed with minimum effort. A 110 mm drum brake delivers smooth stopping power at the rear end, and for good traction the TT-R125LWE runs on a chunky, 90-section rear tyre.

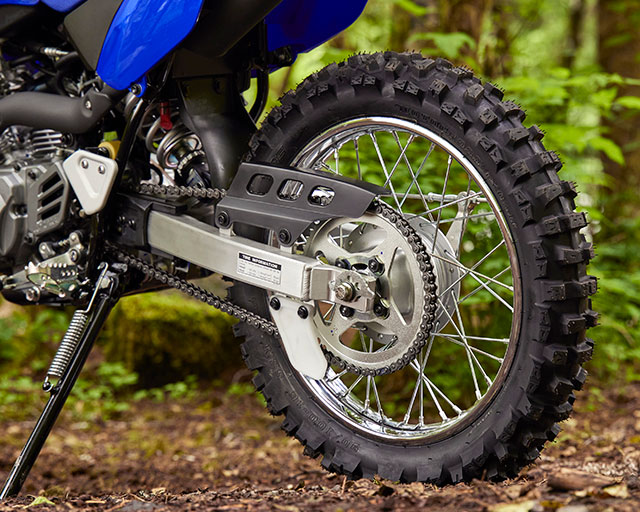

Large diameter wheels
To complement the rugged chassis and long-travel suspension systems, the TT-R125LWE is equipped with a 19-inch diameter front wheel and a 16-inch diameter rear wheel. Their large diameter gives greater ground clearance, and enables the TT-R125LWE to handle uneven off-road surfaces for a more enjoyable ride.
Additional information
| Division | Motorcycle |
|---|---|
| Spec_ Config | Motorcycle |
| SubCategory | Fun |
| Code | TT-R125LWE |
| Length | 1885 |
| Width | 795 |
| Seat_ Height | 805 |
| Wheelbase | 1270 |
| Clearance | 295 |
| Height | 1085 |
| Weight | 90 |
| Dry_ Weight | 85 |
| Engine | Air-cooled, 4-stroke, SOHC, 2-valve |
| Displacement | 124.0 |
| Bore | 54.0 x 54.0 |
| ProductGroup | Off Road |
| Lubrication | Wet sump |
| Compression | 10.0 : 1 |
| Fuel | VM20 x 1 |
| Ignition | CDI |
| Starter | Electric and Kick |
| Fuel_ Tank | 6 |
| Oil | 1.2 |
| Final_ Trans | Chain |
| Transmission | Constant mesh 5-speed |
| Frame | Diamond |
| Suspension_ Front | Telescopic forks, 180mm travel |
| Suspension_ Rear | Swingarm (link suspension), 168mm travel |
| Brakes_ Front | Hydraulic single disc, 220mm |
| Brakes_ Rear | Drum |
| Tyres_ Front | 70/100-19 42M Tube type |
| Tyres_ Rear | 90/100-16 52M Tube type |
