TT-R110E
TT-R110E
Item Model Code: TTR110ET
Base Model: TTR110E
Specifications
- Code: TT-R110E
- Length: 1565
- Width: 680
- Seat_ Height: 670
- Wheelbase: 1080
- Clearance: 180
- Height: 920
- Weight: 72
- Dry_ Weight: 68
- Category: 36
- Engine: Air-cooled, 4-stroke, SOHC
- Displacement: 110.0
- Bore: 51.0 x 54.0
- Spec_ Config: Motorcycle
- Compression: 9.3 : 1
- Lubrication: Wet sump
- Fuel: VM16
- Ignition: CDI
- Starter: Electric and Kick
- Fuel_ Tank: 3.8
- Oil: 1
- Final_ Trans: Chain
- Transmission: Constant mesh 4-speed
- Frame: Steel tube backbone
- Suspension_ Front: Telescopic forks, 115mm travel
- Suspension_ Rear: Swingarm, 110mm travel
- Brakes_ Front: Drum
- Brakes_ Rear: Drum
- Tyres_ Front: 2.50-14 4PR Tube type
- Tyres_ Rear: 3.00-12 4PR Tube type
Features

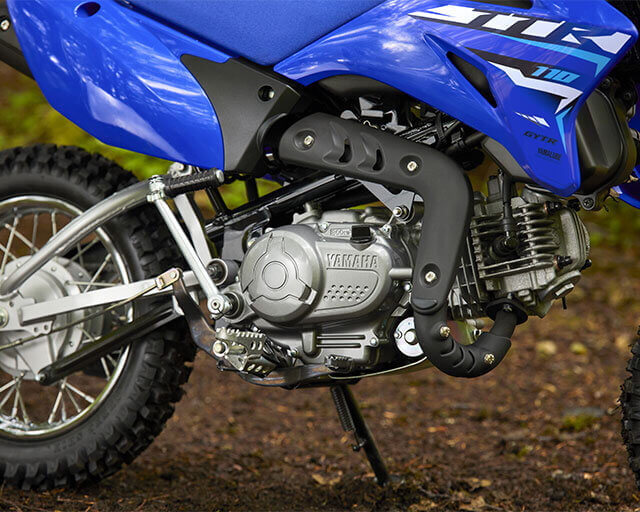

110cc 4-stroke engine
The TT-R110E's rugged and reliable 110cc 4-stroke engine has been designed for smooth and strong performance, making this mid-sized youth bike a joy to ride. And with its semi-automatic 4-speed gearbox, the TT-R110E is an ideal choice for new and experienced riders.

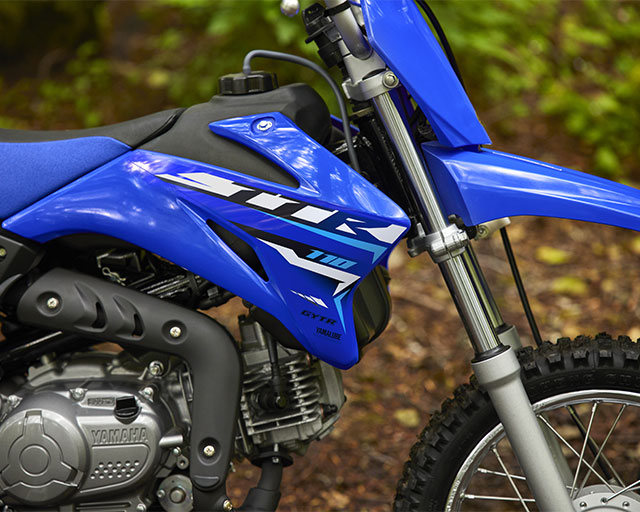

Long travel suspension
The TT-R110E is equipped with rugged suspension systems that are designed to ensure riding comfort and easy handling when riding off-road. At the front, the sturdy telescopic forks give 115 mm of wheel movement, while the single-shock monocross rear suspension offers 110 mm of smooth and progressive travel.

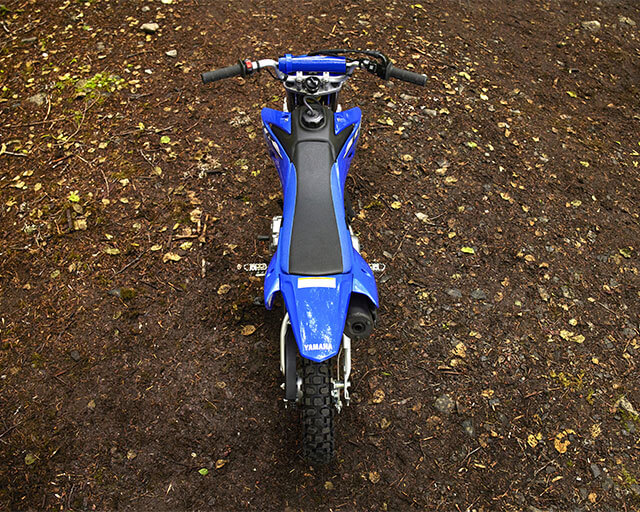

Rugged and lightweight
Check out the TT-R110E's bodywork and it's clear that the radical lines of this stylish 4-stroke have been inspired by our MXGP-winning YZ race bikes. Finished in our world-famous racing-blue colour scheme, the fenders and fuel tank panels are made from ultra-tough polypropylene for minimum weight and maximum strength.

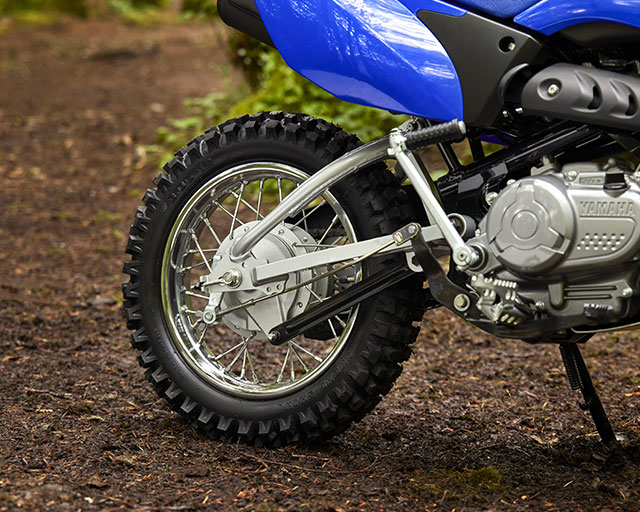

Smooth-action drum brakes
For reliable stopping power, the TT-R110E has drum brakes at the front and rear, and their simple design makes for easy maintenance. Special off-road pattern tyres make this mid-sized youth bike a strong performer in the dirt, while the 14 inch front wheel and 12 inch rear wheel help to handle uneven terrain.
Additional information
| Division | Motorcycle |
|---|---|
| Spec_ Config | Motorcycle |
| SubCategory | Fun |
| Code | TT-R110E |
| Length | 1565 |
| Width | 680 |
| Seat_ Height | 670 |
| Wheelbase | 1080 |
| Clearance | 180 |
| Height | 920 |
| Weight | 72 |
| Dry_ Weight | 68 |
| Engine | Air-cooled, 4-stroke, SOHC |
| Displacement | 110.0 |
| Bore | 51.0 x 54.0 |
| ProductGroup | Off Road |
| Lubrication | Wet sump |
| Compression | 9.3 : 1 |
| Fuel | VM16 |
| Ignition | CDI |
| Starter | Electric and Kick |
| Fuel_ Tank | 3.8 |
| Oil | 1 |
| Final_ Trans | Chain |
| Transmission | Constant mesh 4-speed |
| Frame | Steel tube backbone |
| Suspension_ Front | Telescopic forks, 115mm travel |
| Suspension_ Rear | Swingarm, 110mm travel |
| Brakes_ Front | Drum |
| Brakes_ Rear | Drum |
| Tyres_ Front | 2.50-14 4PR Tube type |
| Tyres_ Rear | 3.00-12 4PR Tube type |
