PW50
PW50
Item Model Code: PW50T
Base Model: PW50
Specifications
- Code: PW50
- Length: 1245
- Width: 610
- Seat_ Height: 475
- Wheelbase: 855
- Clearance: 95
- Height: 705
- Weight: 41
- Dry_ Weight: 37
- Category: 36
- Engine: Air-cooled, 2-stroke, reed-valve
- Displacement: 49.0
- Bore: 40.0 x 39.2
- Spec_ Config: Motorcycle
- Compression: 6.0 : 1
- Lubrication: Autolube
- Fuel: VM12
- Ignition: CDI
- Starter: Kick
- Fuel_ Tank: 2
- Oil: 0.3
- Final_ Trans: Shaft
- Transmission: Automatic
- Frame: Steel tube backbone
- Suspension_ Front: Telescopic forks, 60mm travel
- Suspension_ Rear: Unit swing, 50mm travel
- Brakes_ Front: Drum
- Brakes_ Rear: Drum
- Tyres_ Front: 2.50-10 4PR Tube type
- Tyres_ Rear: 2.50-10 4PR Tube type
Features

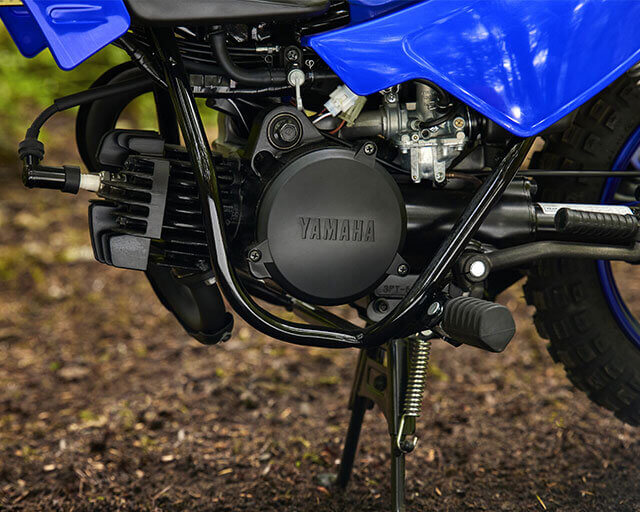

Fully-automatic 2-stroke engine
The PW50's lightweight 50cc 2-stroke air-cooled engine is designed specifically to suit the needs of new riders. Smooth and responsive, the fully-automatic gearbox makes for rider-friendly 'twist-and-go' performance - and the simple throttle limiter allows parents to adjust top speed to suit the rider's skill level.

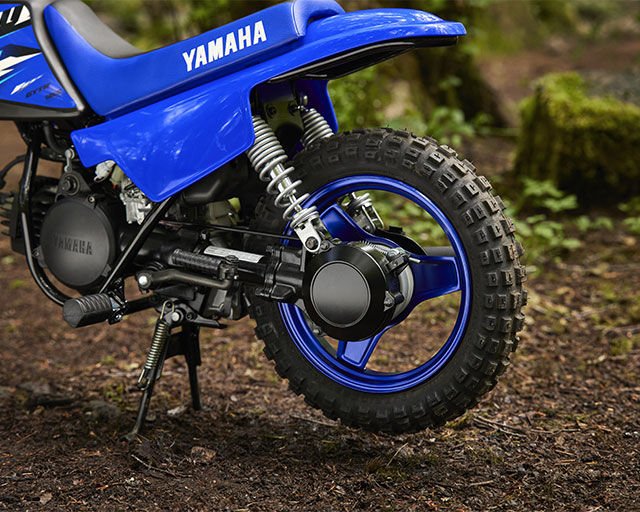

Low-maintenance shaft drive
Just about every feature on this remarkable little motorcycle has been designed to make the PW50 fun to ride and easy own. The fully-enclosed shaft drive system is clean and quiet, which, together with its low-maintenance design, makes this system the obvious choice for new riders and for parents wanting an easy life.

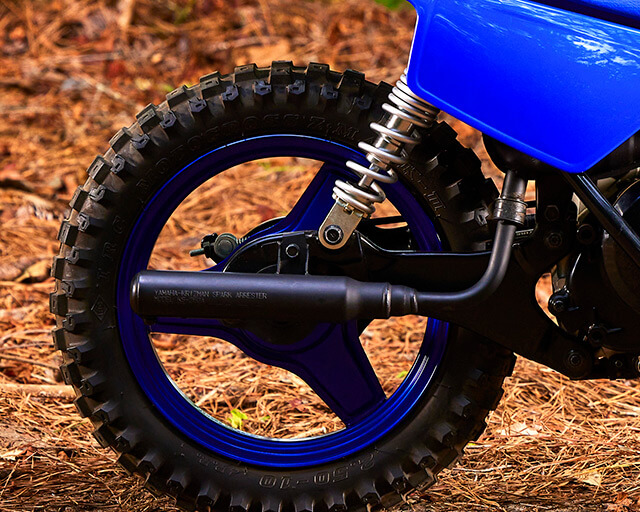

Lightweight high-level exhaust
Check out the exhaust and you can see another example of how our engineers have gone to great lengths to enhance safety and convenience. Featuring a heat shield for added protection, this lightweight pipe is routed close to the engine for extra ground clearance and improved protection.

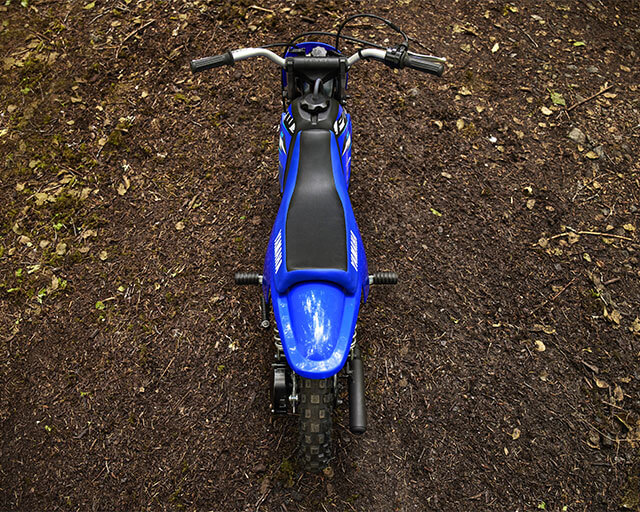

Low seat height
With its low seat height of only 475 mm and a comfortable riding position, new riders will feel instantly at home on the PW50. The handlebar layout is similar to a bicycle's, with the back brake operated by the left hand and front brake by the right, making it easy for beginners. Just twist the throttle and the fun begins.

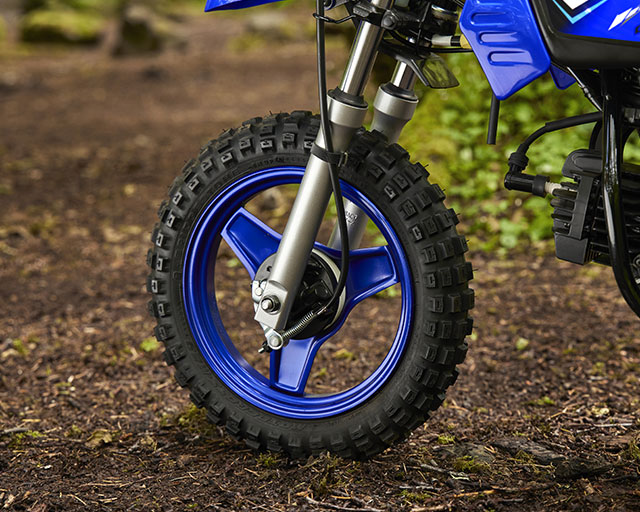

Strong 3-spoke steel wheels
Although it weighs only 41 kg, this is a tough little motorcycle that's designed to deliver many years of fun. Its 3-spoke 10 inch steel wheels are strong and easy to clean - and for plenty of grip, the PW50 runs on chunky 2.5 inch wide tyres.

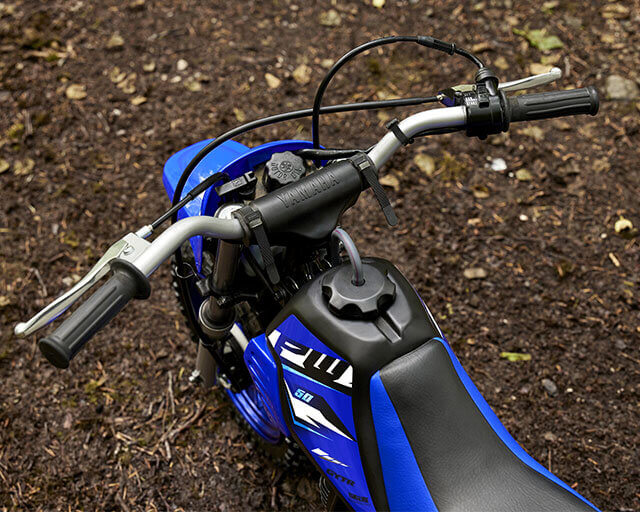

Lightweight and strong
Just like Yamaha's larger-capacity off road bikes, the PW50 is equipped with polypropylene bodywork which combines high strength with low weight. The front and rear fenders and side panels are finished in racing blue which give this leading mini-bike a sporty image.
Additional information
| Division | Motorcycle |
|---|---|
| Spec_ Config | Motorcycle |
| SubCategory | Fun |
| Code | PW50 |
| Length | 1245 |
| Width | 610 |
| Seat_ Height | 475 |
| Wheelbase | 855 |
| Clearance | 95 |
| Height | 705 |
| Weight | 41 |
| Dry_ Weight | 37 |
| Engine | Air-cooled, 2-stroke, reed-valve |
| Displacement | 49.0 |
| Bore | 40.0 x 39.2 |
| ProductGroup | Off Road |
| Lubrication | Autolube |
| Compression | 6.0 : 1 |
| Fuel | VM12 |
| Ignition | CDI |
| Starter | Kick |
| Fuel_ Tank | 2 |
| Oil | 0.3 |
| Final_ Trans | Shaft |
| Transmission | Automatic |
| Frame | Steel tube backbone |
| Suspension_ Front | Telescopic forks, 60mm travel |
| Suspension_ Rear | Unit swing, 50mm travel |
| Brakes_ Front | Drum |
| Brakes_ Rear | Drum |
| Tyres_ Front | 2.50-10 4PR Tube type |
| Tyres_ Rear | 2.50-10 4PR Tube type |
