AG125
AG125
Item Model Code: AG125S
Base Model: AG125
Specifications
- Code: AG125
- Length: 2110
- Width: 940
- Seat_ Height: 800
- Wheelbase: 1350
- Clearance: 225
- Height: 1095
- Weight: 113
- Dry_ Weight: 105
- Category: 78
- Engine: Air-cooled, 4-stroke, single cylinder
- Displacement: 124.0
- Bore: 54.0 x 54.0
- Spec_ Config: Motorcycle
- Compression: 10.0 : 1
- Lubrication: Wet sump
- Fuel: Carburetter
- Ignition: CDI
- Starter: Electric and Kick
- Fuel_ Tank: 11
- Oil: 1.0
- Final_ Trans: Chain
- Transmission: Constant mesh 5-speed
- Frame: Semi double cradle
- Suspension_ Front: Telescopic forks, 180mm travel
- Suspension_ Rear: Swingarm, 130mm travel
- Brakes_ Front: Drum
- Brakes_ Rear: Drum
- Tyres_ Front: 2.75-19-4PR Tube type
- Tyres_ Rear: 3.50-18-4PR Tube type
Features

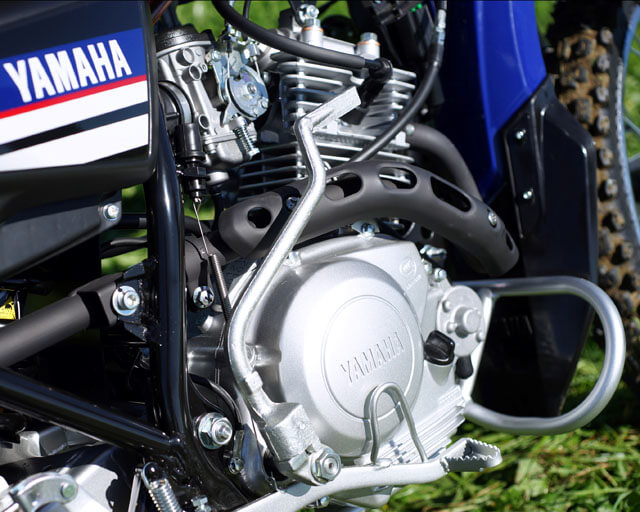

Bullet proof engine
The AG125 is powered by a 124cc four-stroke engine that offers smooth, reliable performance with minimal fuel consumption. A key engine feature is the low noise level, which is great for following stock. There is a fuel tap on the left side of the tank with on, off, and reserve, for when the steel 11-litre fuel tank eventually gets low and needs filling.

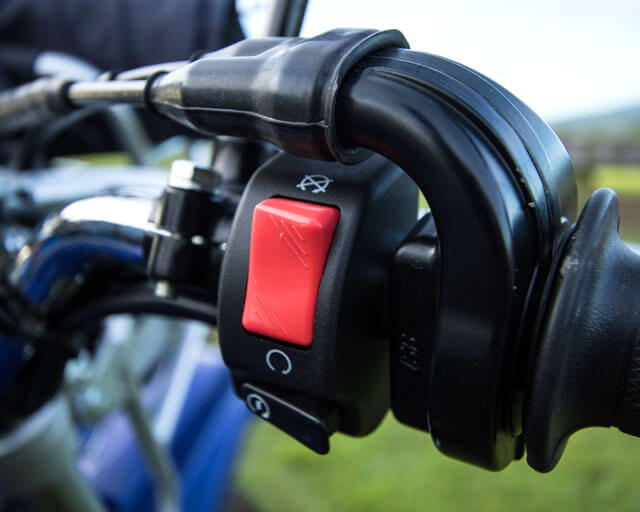

Electric Start
Running push button electric start makes getting up and running a breeze and in the unlikely event of battery issues, there’s a kick-start as a backup. Other controls are familiar and include a dash with odometer and trip meter as well as lights to indicate neutral, high beam and indicators.

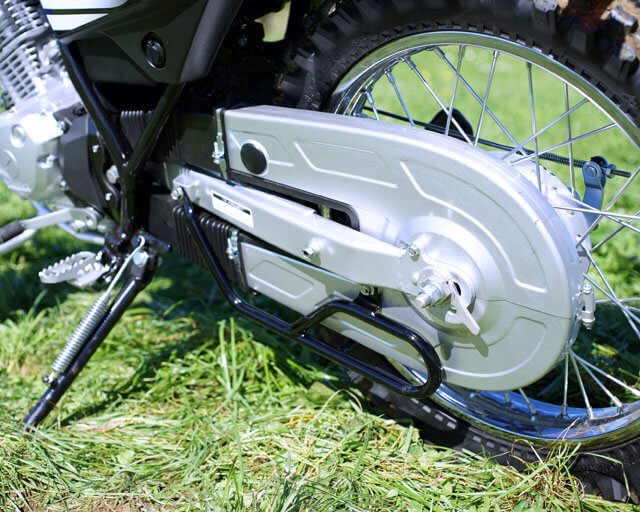

Fully enclosed chain
A fully enclosed chain is protected from mud and dust, ensuring extended life of both chain and sprockets and keeping costs down at service time. Chain adjustment has been made easier with the use of the snail-type cam, making this job fast and easy even if not mechanically inclined.

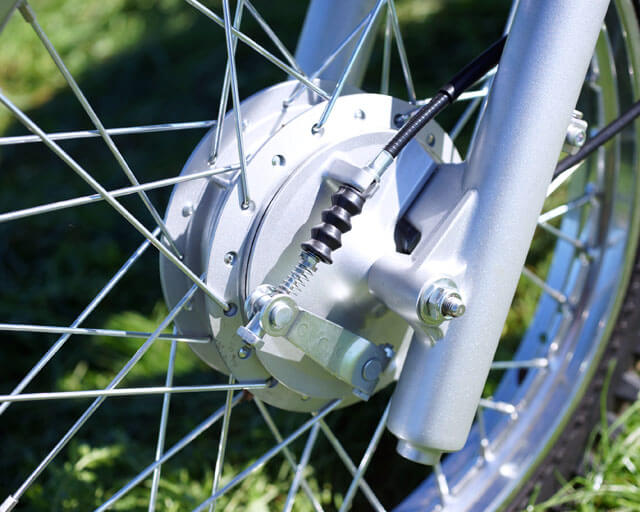

Sealed Drum Brakes
Braking is delivered by low maintenance sealed drum brakes front and rear. Drum brakes are ideal for farm use because while disc brakes can provide better stopping power in great conditions, farmers often encounter mud and dust that can drastically reduce the ability of a disc setup.

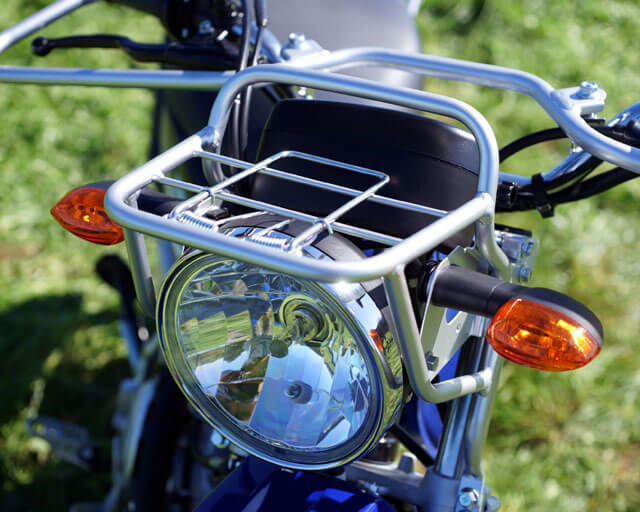

Dual racks
The front and rear racks are useful for carrying wet weather gear and a few fencing tools as required. And running a sidestand on both sides of the bike – with a wide footprint - mean that you can park the AG125 just about anywhere.
Additional information
| Division | Motorcycle |
|---|---|
| Spec_ Config | Motorcycle |
| SubCategory | Agriculture |
| Code | AG125 |
| Length | 2110 |
| Width | 940 |
| Seat_ Height | 800 |
| Wheelbase | 1350 |
| Clearance | 225 |
| Height | 1095 |
| Weight | 113 |
| Dry_ Weight | 105 |
| Engine | Air-cooled, 4-stroke, single cylinder |
| Displacement | 124.0 |
| Bore | 54.0 x 54.0 |
| ProductGroup | Off Road |
| Lubrication | Wet sump |
| Compression | 10.0 : 1 |
| Fuel | Carburetter |
| Ignition | CDI |
| Starter | Electric and Kick |
| Fuel_ Tank | 11 |
| Oil | 1.0 |
| Final_ Trans | Chain |
| Transmission | Constant mesh 5-speed |
| Frame | Semi double cradle |
| Suspension_ Front | Telescopic forks, 180mm travel |
| Suspension_ Rear | Swingarm, 130mm travel |
| Brakes_ Front | Drum |
| Brakes_ Rear | Drum |
| Tyres_ Front | 2.75-19-4PR Tube type |
| Tyres_ Rear | 3.50-18-4PR Tube type |
